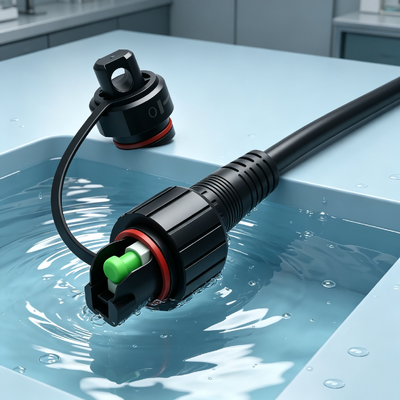

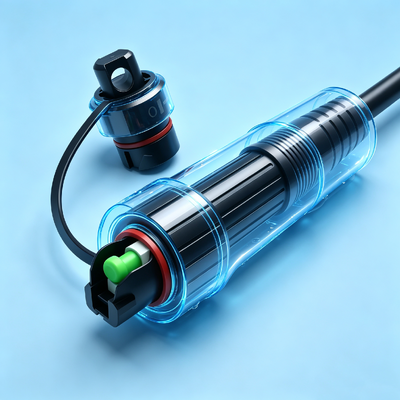

Factory Outdoor IP67 Patch Cord Cable Duplex Connectors FTTA Waterproof Patch Cord huawei
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ケーブルジャケット素材 | LSZH/PVC/PE/TPU | ||
|---|---|---|---|
| ハイライト | FTTA waterproof patch cord,IP67 fiber optic cable,duplex connectors patch cord |
||
製品の説明
Fiber Optic Drop Cable Assembly Toneable Flat Drop Cable Patch Cord FTTA Corning Opti-Tap Waterproof Patch Cord
Feature
- Positive mechanical feedback to inform the operator when the connector is fully mated
- No cable buckling during or after installation
- Robust bayonet locking for easy, fast and secure mating
- A water-proof, dust-proof and corrosion-resistant design that utilizes metal die cast bulkhead
- Cost savings through the elimination of fiber management in the radio unite is suitable for producing PET plastic containers and bottles in all shapes.
- one single mode fiber
Core Cladding Coating Buffer
| Item | Unit | Specification |
| Attenuation | dB/km |
1310nm≤0.4 1550nm≤0.3 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
| Zero dispersion wavelength | Nm | 1300~1324 |
| Zero dispersion slope | Ps/nm.km | ≤0.095 |
| Fiber cutoff wavelength | Nm | ≤1260 |
| Mode field diameter | Um | 9.2±0.5 |
| Mode field concentricity | Um | <=0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | Um | ≤12.5 |
| Coating diameter | um | 245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
| Proof test | kpsi | ≥100 |
- Connector Specification
| ITEM | PARAMETER |
| Connector type | PC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| Fiber mode | Single mode 9/125 |
| Operating wavelength | 1310nm, 1550nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |
Product Details
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of
products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than
that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,
Enough Meters, High Quality, High Performance". Providing our customers with higher quality
products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the
logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support
long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
