IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box

起源の場所 中国
ブランド名 AIXTON
証明 ISO9001,CE,FCC,ROHS
モデル番号 AXT-オプティタップ
最小注文数量 10個
パッケージの詳細 1PC/Boxの6PCS/Carton.Cartonサイズ:60*41*40cmは、重くする:10.5KG
受渡し時間 15-20日
支払条件 T/T、L/C、ウェスタンユニオン
供給の能力 5000個/月

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
製品名 屋外用Opti-Tap端子箱 ブランド名 AIXTON/OEM
材料 プラスチック腹筋 ケーブル径 6~12mm
ケーブルポート 4/6/8 繊維は番号が付いている(中心) 1/2/4/6/8
大気圧 70-106Kpa
ハイライト

IP86 waterproof fiber terminal box

,

MST Opti-Tap fiber access box

,

8 port fiber optic terminal

製品の説明

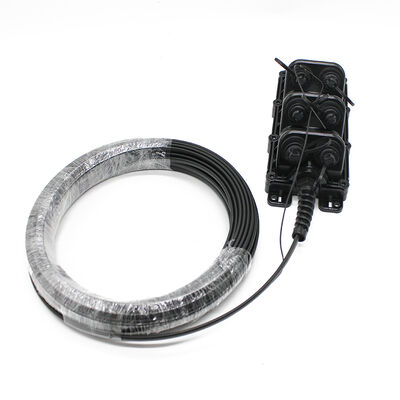

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 0

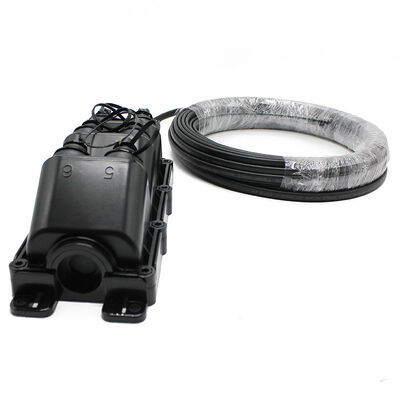

                                                             IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 1

Dimensions(LxWxH)
225xl 20x85nnn (2∕4core)
305xl20x85πnn (6∕8core)
416xl20x85πnn (12core)
Materials
PC
Wateipiwf Grade
IP68 (3M,72hour)∙
Temperatiue Range
-40 〜+80oC
Cable Strength Member
Armoured or Non-armoιued
Cable Yype
Hybrid or non-hybrid
Round Cable OD
6. Omin to 12. Onnn
Flat Cable Dimension
4.0x7.0mm,4.0x8. Omm
Cable Jacket Material
LSZH,PE or TPU
Bending Radius
20D
Cable Cnish Resistance
500N∕cm long term
Tensile Sħength
1200N long term
UV Resistance
ISO 4892-3
Fire Protection Rating
UL94-V0
Number of PLC
Ipc (SC 1*4 PLC)
Ipc (SC 1*8 PLC)
Ipc (SC 1*12 PLC)
Ipc (LC 1*8 PLC)
Ipc (LC 1*16 PLC)
Ipc (LC 1*24 PLC)
Number of Fusion
Protection Tube
≤ 24 pcs

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 2

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 3

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 4

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 5

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 6


FAQ

IP86 Waterproof MST Box Opti-Tap 2/4/6/8 Port Fiber Access Terminal Box 7

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
